ESDM-4 XM2 Inverter Upgrade Kit
The ESDM-4 Enhanced Smart Display Module Kit is the self-install version of our XM2 upgrade — the same 4-line daylight-readable display, modern battery-chemistry support (36V LiFePO4 and Super Capacitor), menu-driven voltage configuration, and per-string battery voltage display, shipped as an installable kit so your own techs can upgrade existing XM2 units in place. Field-tested and proven with major North American cable operators. The ESDM-4 also supports Custom Battery Profiles: field technicians configure named profiles directly on the display, and Trivision can preload profiles at no additional charge when battery specifications are provided ahead of an order.
The ESDM-4 XM2 Inverter Upgrade Kit is Trivision’s self-install upgrade module for the Alpha XM2 CableUPS. It replaces the original 2-line LCD and dip-switch configuration with a 4-line daylight-readable display, menu-driven voltage setup, and support for 36V LiFePO4 and Super Capacitor battery systems in addition to traditional SLA and AlphaCell packs. The upgraded module is compatible with Alpha DM3, DM3X, DSM3, DSM3X, DSM33X, DPM3, IDH3, and IDH4X transponders, plus Electroline EECM DHTD-N and EECM /DHTX-N cards. The ESDM-4 also supports Custom Battery Profiles: field technicians configure named profiles directly on the display, and Trivision can preload profiles at no additional charge when battery specifications are provided ahead of an order.
Key points
- Same 4-line daylight-readable display upgrade as our complete unit
- 36V LiFePO4 and 36V Super Capacitor battery support
- No dip switches – voltage config from the menu
- Individual battery string voltage display (with supported transponders)
- Compatible with Alpha DM3/DM3X/DSM3/DSM3X/DSM33X/DPM3/IDH3/IDH4X and Electroline transponders
- Field-tested and proven with major North American cable operators
- Self-install kit – use on your existing XM2 hardware in place
- Custom Battery Profiles – named profiles configurable on-device or preloaded by Trivision at no additional charge
Specifications
- Mount: Modular – installs in XM2 chassis
- Connectivity: Via existing XM2 chassis + Alpha/Electroline transponder

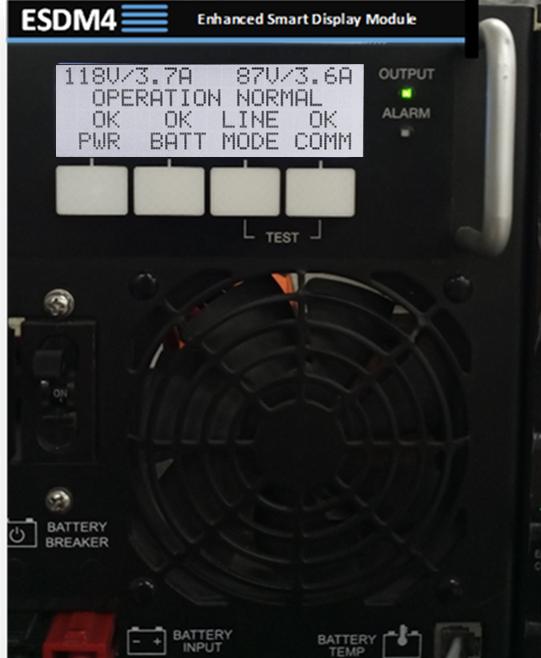

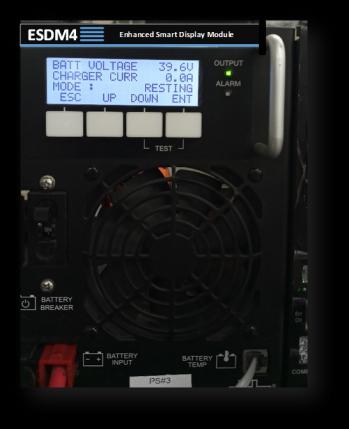

- GUI / Interface: 4 Line x 20 Character daylight-readable LCD with white backlight; soft-key membrane keypad
- Control Options: Manual (front-panel keypad); remote via paired transponder
- Max Load: Bulk charge current: 10 A (at 80% load, nominal input)
- Frequency: 60 Hz / 50 Hz, ±0.05%
- Operating Temperature: Inherits from XM2 chassis
- Humidity: Inherits from XM2 chassis
- Dimensions: Module dimensions per XM2 slot
- Safety and Compliance: Individual battery-string voltage monitoring with supported transponders; Major and Minor alarms via LCD and front-panel LEDs; temperature-compensated 3-stage (SLA) or 2-stage (LiFePO4) charging
- Country of Origin: Designed and assembled in Canada
- Condition: New (module) – installs on existing XM2 hardware
- Pricing Model: Request a quote. Small enterprise/bulk discount available for volume orders.
